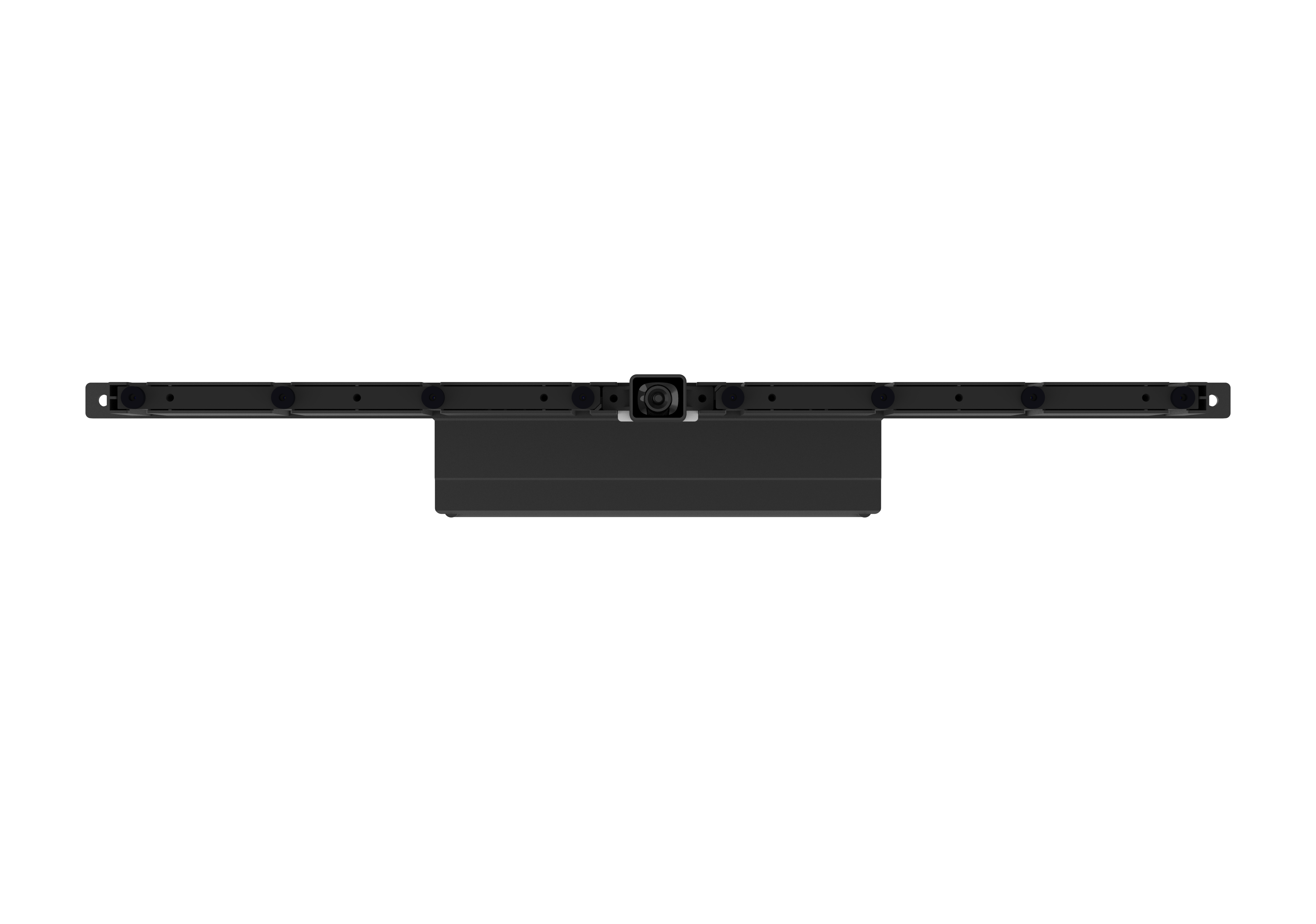

VCM10-SK5E
8-mic audio-video module for meeting displays and compact all-in-one terminals.
One VCM module family for clear video, far-field pickup and AI collaboration
VCM modules pre-integrate 50MP imaging, 8-mic or 16-mic arrays, AI audio processing and intelligent video modes for meeting panels, smart displays and all-in-one endpoints.
50MP
4K@30fps
8Mic / 16Mic
UVC / UAC
VCM Series
VCM10-SK5E and VCM12 provide different audio array scales while sharing a compact audio-video integration path for meeting terminals.

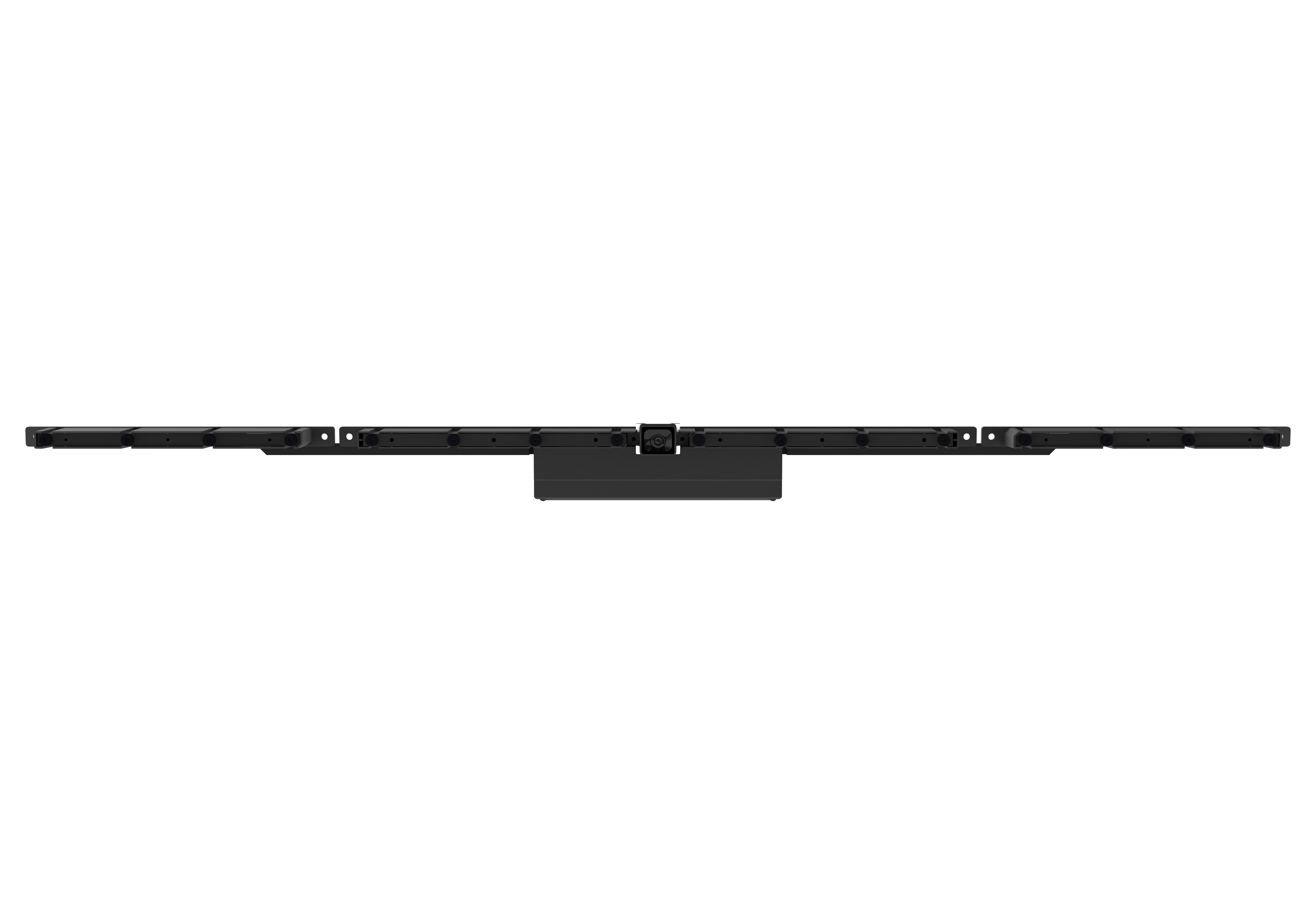

VCM12
16-mic audio-video module with stronger array capability and smart audio curtain support.
Key capabilities are not just specifications. They combine into the meeting experience.
The module integrates camera, microphone array and algorithm modes into one product language around seeing clearly, hearing clearly, tracking accurately and connecting quickly.
1/1.55-inch Sensor
50MP imaging and a large sensor help preserve meeting faces, whiteboards and display details.
100.6°
100.6° Ultra-Wide Angle
Covers the meeting table and front interaction area, reducing cramped framing in small rooms.
HDR / WDR
Maintains visible detail in window, whiteboard and display backlight conditions.
Smart Framing
Reframes automatically according to participant number and location.
Speaker Tracking
Uses audio source direction and human detection to focus on the current speaker.
AI Audio Processing
AI noise reduction, AI echo cancellation, AGC and dereverberation reduce room interference.
Smart Audio Curtain
Limits pickup to target areas and reduces off-axis speech in meeting or transcription workflows.
ASR Enhancement
Improves speech input quality for meeting minutes, real-time captions and voice interaction.
AI Audio-Video Mode Collaboration
Audio and video are not separate paths. The module coordinates array pickup, imaging and algorithm modes so meeting terminals feel more natural.
Panorama Mode
Keeps the full room visible for fixed composition, live demonstrations and multi-person discussion.
Auto Framing
Adjusts the frame according to participant number and position, suitable for dynamic daily meetings.
Voice Tracking
Combines sound source localization and human detection to focus the image on the active speaker.
Smart Gallery
Shows multiple participants as close-up views so remote attendees can see each person more clearly.
Smart Audio Curtain
Limits target pickup range and reduces non-target sound entering the meeting or transcription path.
ASR Enhancement
Cleans and enhances input speech for meeting records, live captions and voice commands.
Core Module Parameters
Selected parameters from the VCM10-SK5E and VCM12 specifications.
Parameter
VCM10-SK5E
VCM12
Core Configuration
8 Mic + 50MP
16 Mic + 50MP
Video Output
Up to 3840x2160@30fps
Up to 3840x2160@30fps
Lens and Image
100.6° D-FOV, AF, HDR / WDR
100.6° D-FOV, AF, HDR / WDR
Pickup Range
Up to 10 m
Up to 15 m
Audio Sampling
32kHz pickup path
32kHz pickup path
Audio AI
AI NR, AI AEC, AGC, dereverberation
AI NR, AI AEC, AI Beam, AI DOA, AGC, smart audio curtain
Video AI
Auto framing, voice tracking
Auto framing, voice tracking, smart gallery
Protocol
USB2.0 UVC / UAC
USB2.0 UVC / UAC
Power
USB 5V, 1A
USB 5V, 1A
Application Scenarios
Choose the module scale and AI mode combination around room size, pickup distance and meeting workflow.
Small Meetings
VCM10-SK5E combines auto framing, AI noise reduction and echo cancellation for fast, stable collaboration.
Large Meeting Rooms
VCM12 combines speaker tracking, AI beamforming and smart audio curtain for longer tables.
Teaching and Training
VCM12 pairs voice tracking, directional pickup and ASR enhancement for classroom records and captions.
Multi-person Workshops
Use smart gallery and wide pickup to keep more participants visible and intelligible at the same time.
Display and Endpoint Integration
Both modules provide a compact UVC/UAC front end for meeting panels, smart screens and embedded terminals.
Integrate one module instead of rebuilding every front-end path
Bluesource-Tech can support product adaptation around camera placement, array layout, acoustic tuning and AI mode integration.
